DIAGRAMA ELÉTRICO – Ssangyong Actyon (Wiring Diagram 1999)

CONTENT:

HOW TO USE ELECTRICAL WIRING DIAGRAM
1. HOW TO READ ELECTRICAL WIRING DIAGRAM
2. CIRCUIT IDENTIFICATION SYMBOL
3. FUNCTION OF POWER SUPPLY LINE
4. WIRING HARNESS COLOR IDENTIFICATION
5. HOW TO CHECK TERMINAL NUMBER OF CONNECTOR

POSITION OF CONNECTORS AND GROUNDS

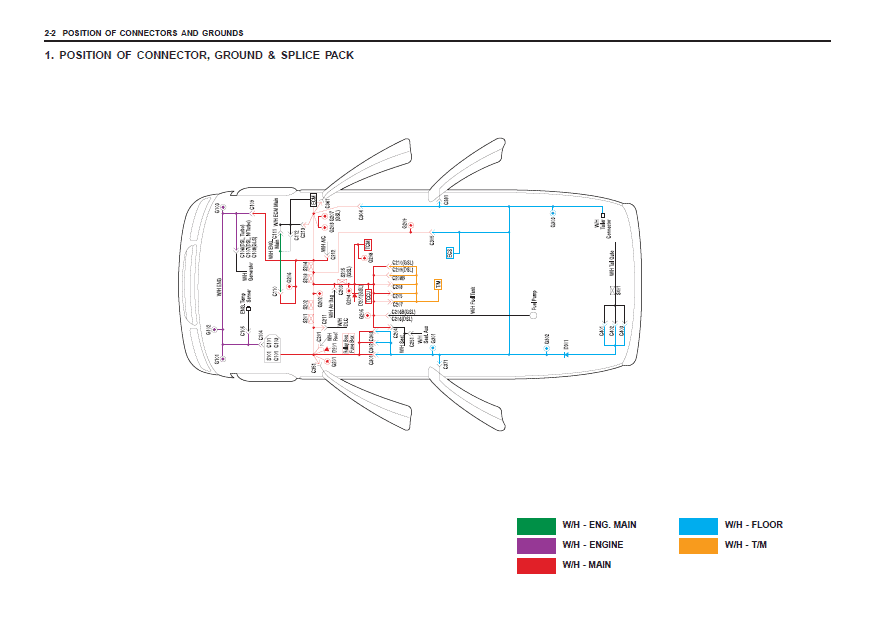

1. POSITION OF CONNECTOR, GROUND & SPLICE PACK

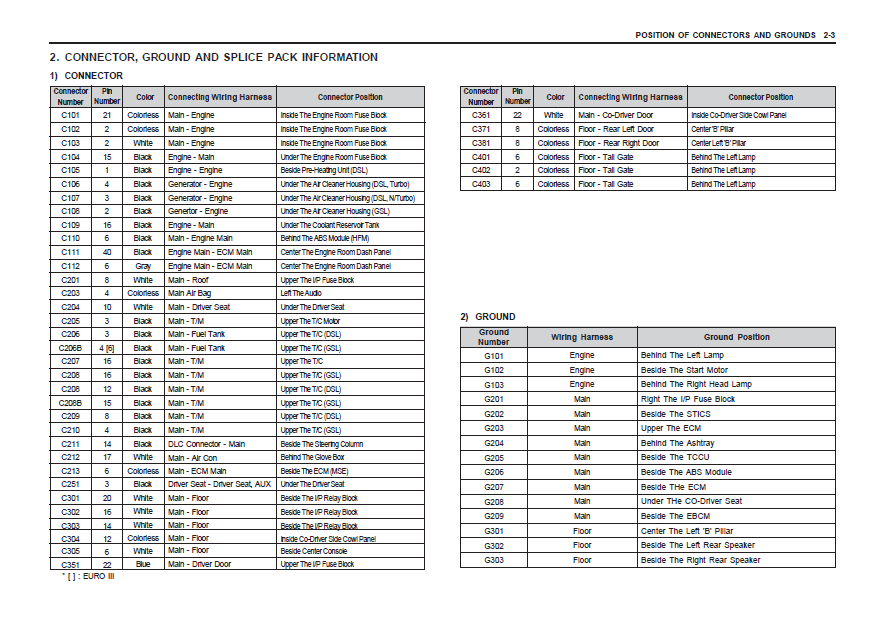

2. CONNECTOR, GROUND & SPLICE PACK INFORMATION

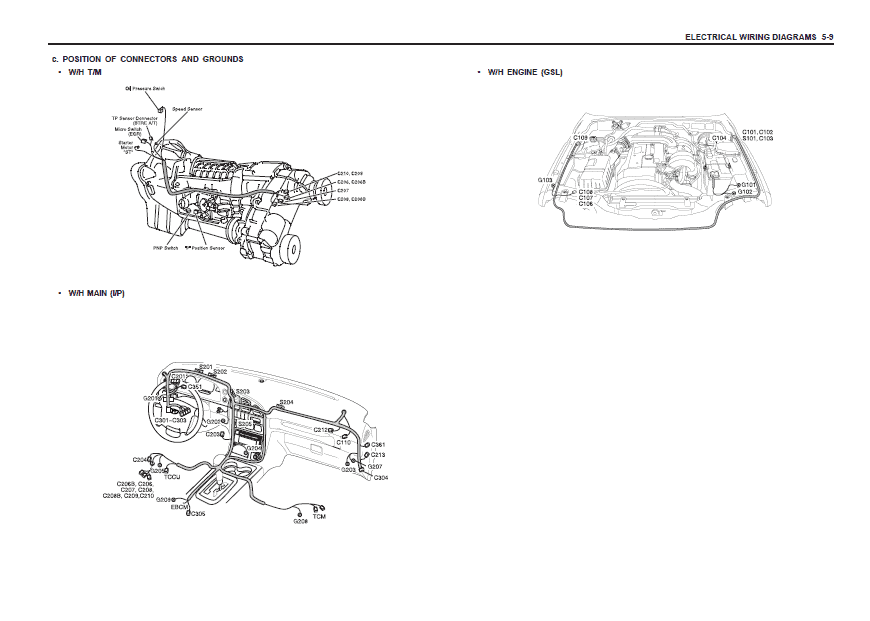

3. WIRING HARNESS, CONNECTOR & GROUND LOCATION

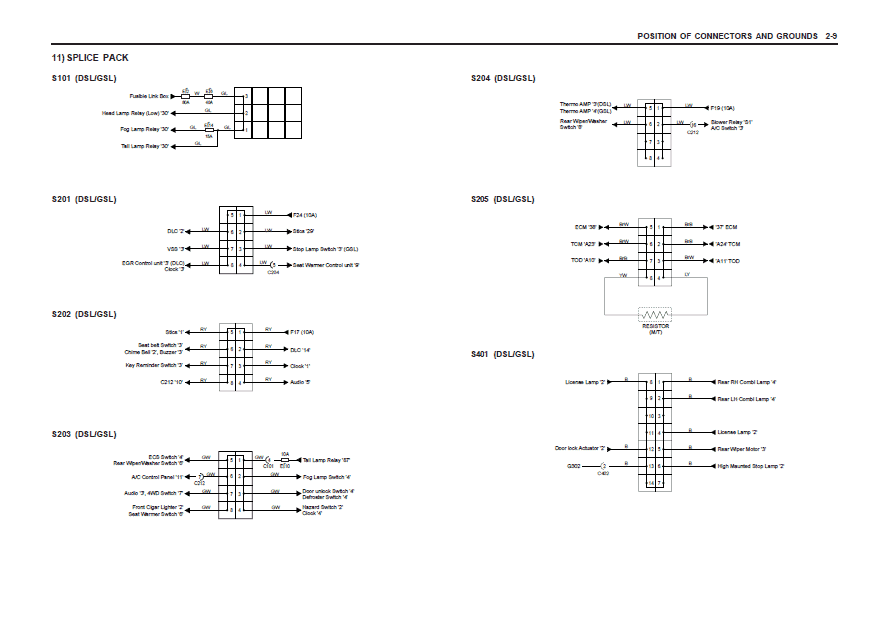

WIRING DIAGRAM FOR POWER SUPPLIES
1. FUSIBLE LINK FUSE BLOCK & ENGINE ROOM FUSE BLOCK POWER DISTRIBUTION
2. I/P FUSE BLOCK POWER DISTRIBUTION

USAGE AND CAPACITY OF FUSES IN FUSE BLOCK
1. ENGINE ROOM FUSE & RELAY BLOCK
2. I/P FUSE BLOCK
3. POSITION OF RELAY, CONTROL UNIT AND PARTS NUMBER

ELECTRICAL WIRING DIAGRAMS

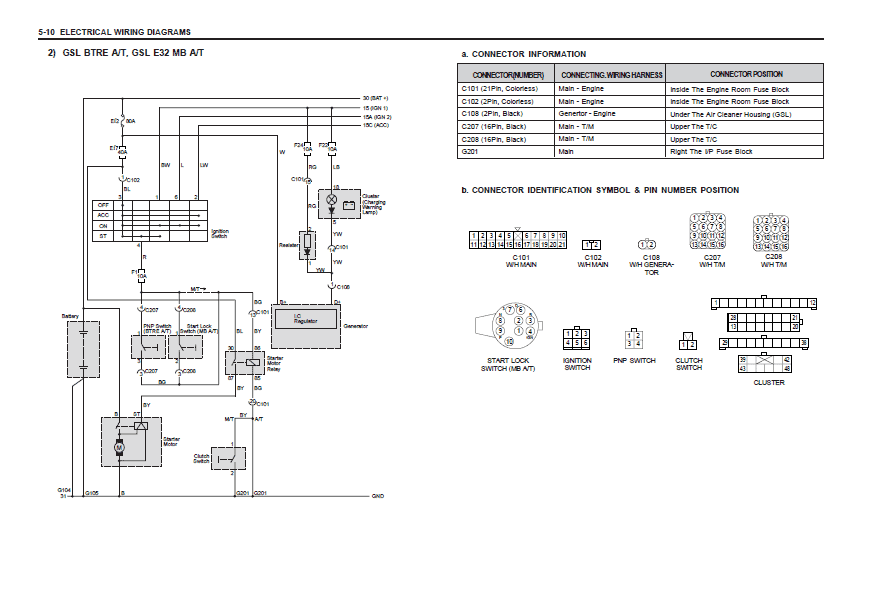

1. STARTING & CHARGING CIRCUIT
2. PREHEAT’G UNIT CIRCUIT
3. EGR CONTROL CIRCUIT

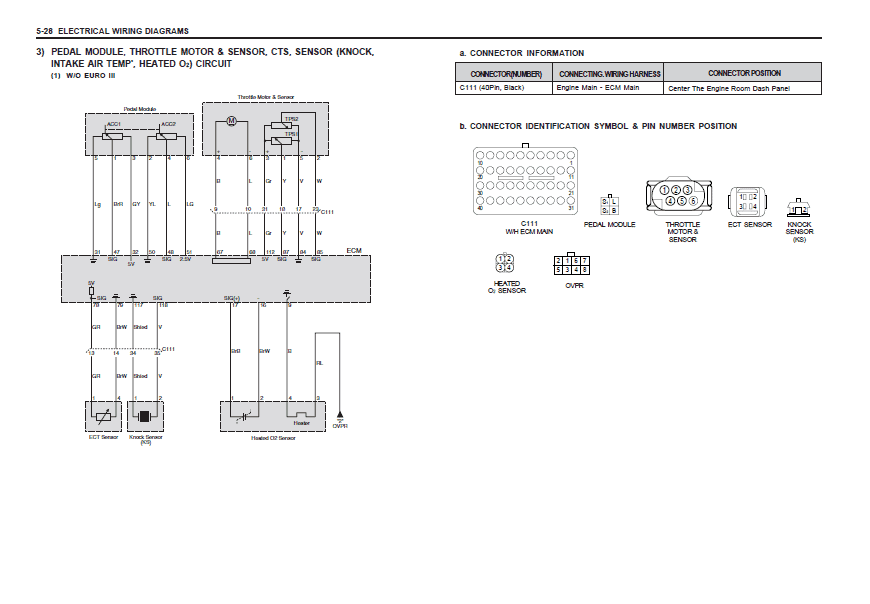

4. ECM (E23, MSE)
5. ECM (E32, MSE)
6. ECM (E20, HFM)
7. ECM(E23, HFM)
8. ECM(E32, HFM)
9. DLC CIRCUIT
10. TCM(GSL, BTRE)
11. TCM(DSL, BTRE)
12. KICK DOWN RELAY, ‘B’ SWITCH CIRCUIT (MB A/T)
13. TCCU-PART TIME
14. TCCU-FULL TIME
15. TOD(TORQUE ON DEMAND)-E32,MSE
16. ECS
17. COOLING FAN, A/C COMPRESSURE CIRCUIT
18. MANUAL AIR CONDITIONER CIRCUIT
19. SATC(SEMI AUTO TEMPERATURE CONTROL) CIRCUIT
20. FATC (FULL AUTO TEMPERATURE CONTROL) CIRCUIT
21. HEAD LAMP CIRCUIT
22. HEAD LAMP LEVEL’G DEVICE CIRCUIT
23. ILLUMINATION CIRCUIT
24. POSITION LAMP, TAIL LAMP, LICENCE PLATE LAMP CIRCUIT
25. HAZARD LAMP CIRCUIT
26. BACK UP LAMP CIRCUIT
27. FRT FOG LAMP CIRCUIT
28. REAR FOG LAMP CIRCUIT
29. SHIFT LOCK SOLENOID, STOP LAMP CIRCUIT
30. CLUSTER
31. STICS
32. REKES, AUTO-DIMMING ROOM MIRROR CIRCUIT
33. SUN ROOF CIRCUIT
34. REAR WIPER CIRCUIT
35. ELECTRIC OSRV MIRROR CIRCUIT
36. DIGITAL CLOCK, SEAT BELT TENSION REDUCER CIRCUIT
37. HORN, CIGAR LIGHTER CIRCUIT
38. POWER SEAT CIRCUIT
39. SEAT WARMER CIRCUIT
40. AUDIO CIRCUIT
41. ABS 5.3 CIRCUIT
42. ABD 5.3 CIRCUIT
43. AIR BAG CIRCUIT
44. IMMOBILIZER(DIESEL-CRYPTO TYPE) CIRCUIT

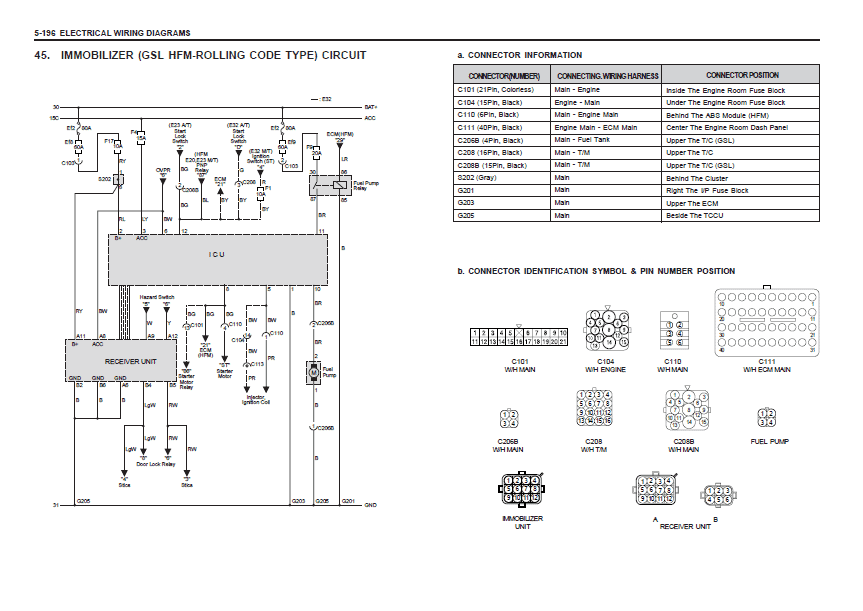

45. IMMOBILIZER(GASOLINE HFM-ROLLING CODE TYPE) CIRCUIT
46.TRAILER CONNECTOR CIRCUIT
