MANUAL DE SERVIÇO – Chery Tiggo 7 2024 (Electrical Wiring Diagram)

Content:

How to Use This Manual:
– Diagram Example

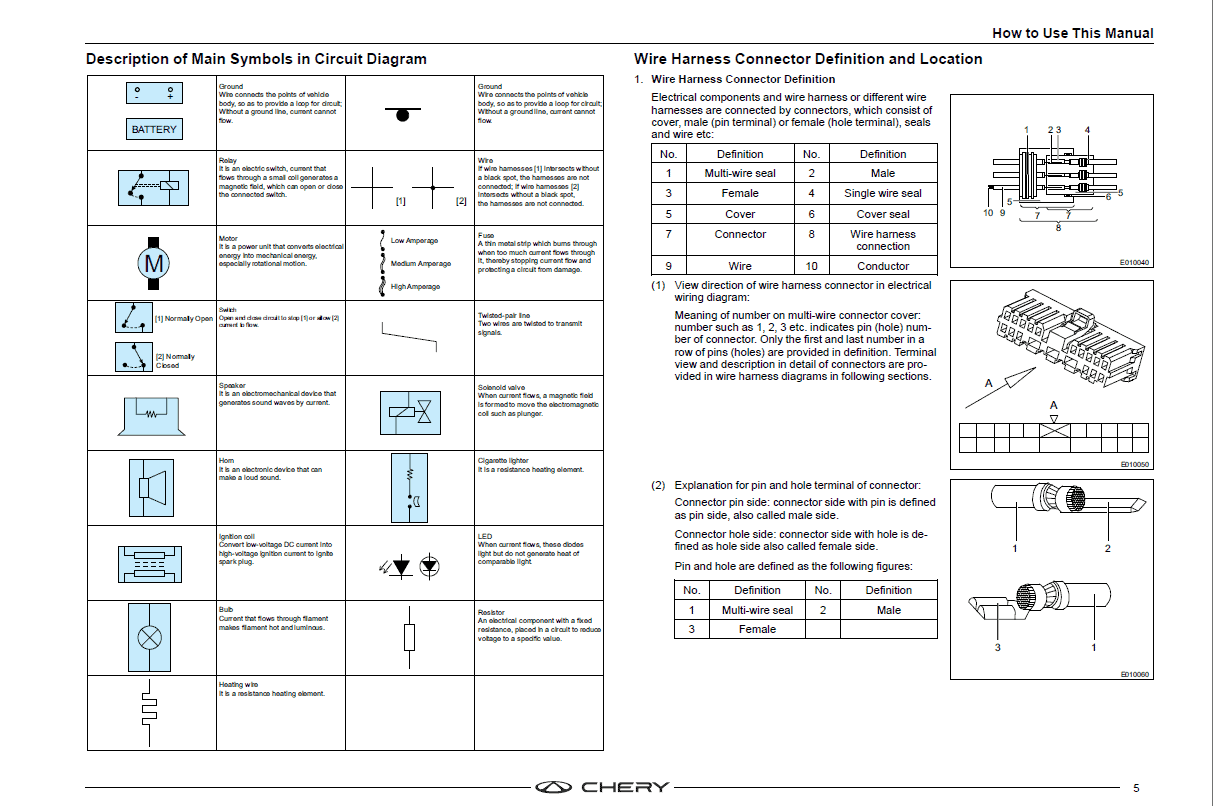

– Description of Main Symbols in Circuit Diagram
– Wire Harness Connector Definition and Location
– Abbreviation

Troubleshooting:
– Troubleshooting Tool
– Electrical Malfunction Troubleshooting

Fuse and Relay Information:

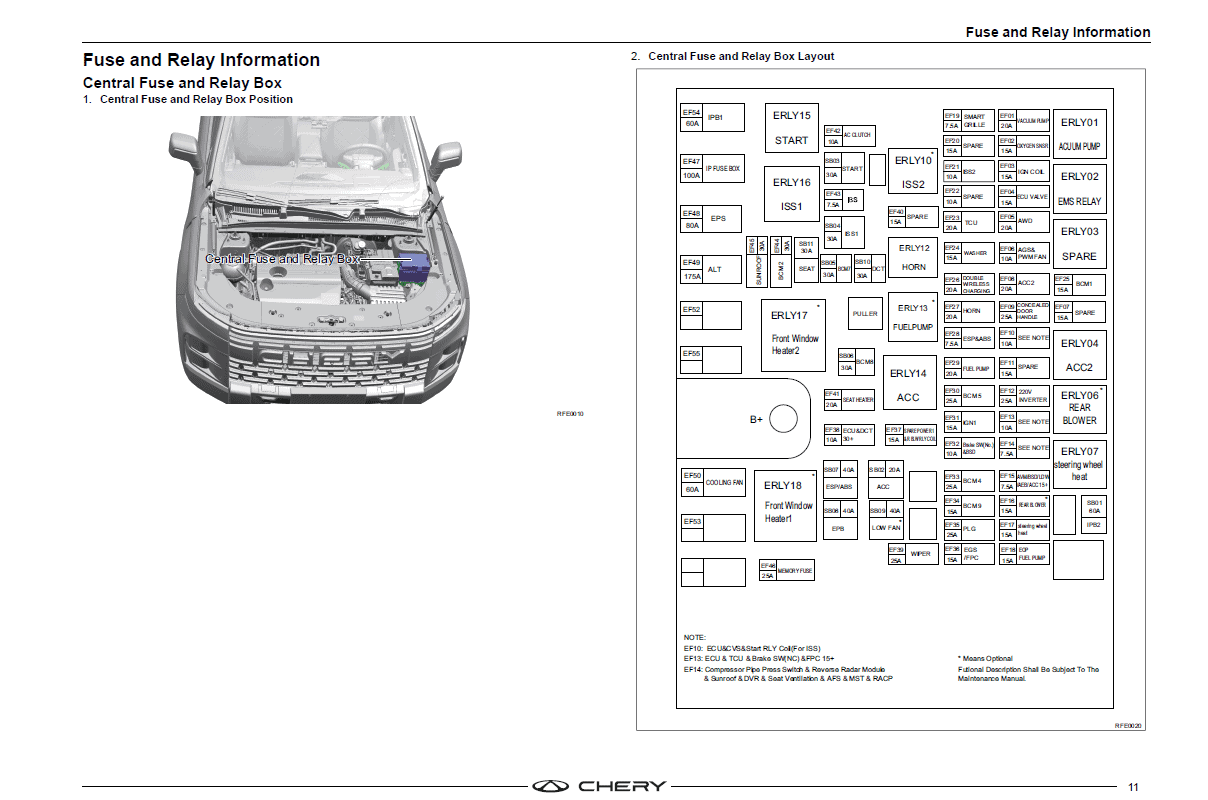

– Central Fuse and Relay Box
– Instrument Panel Relay Box

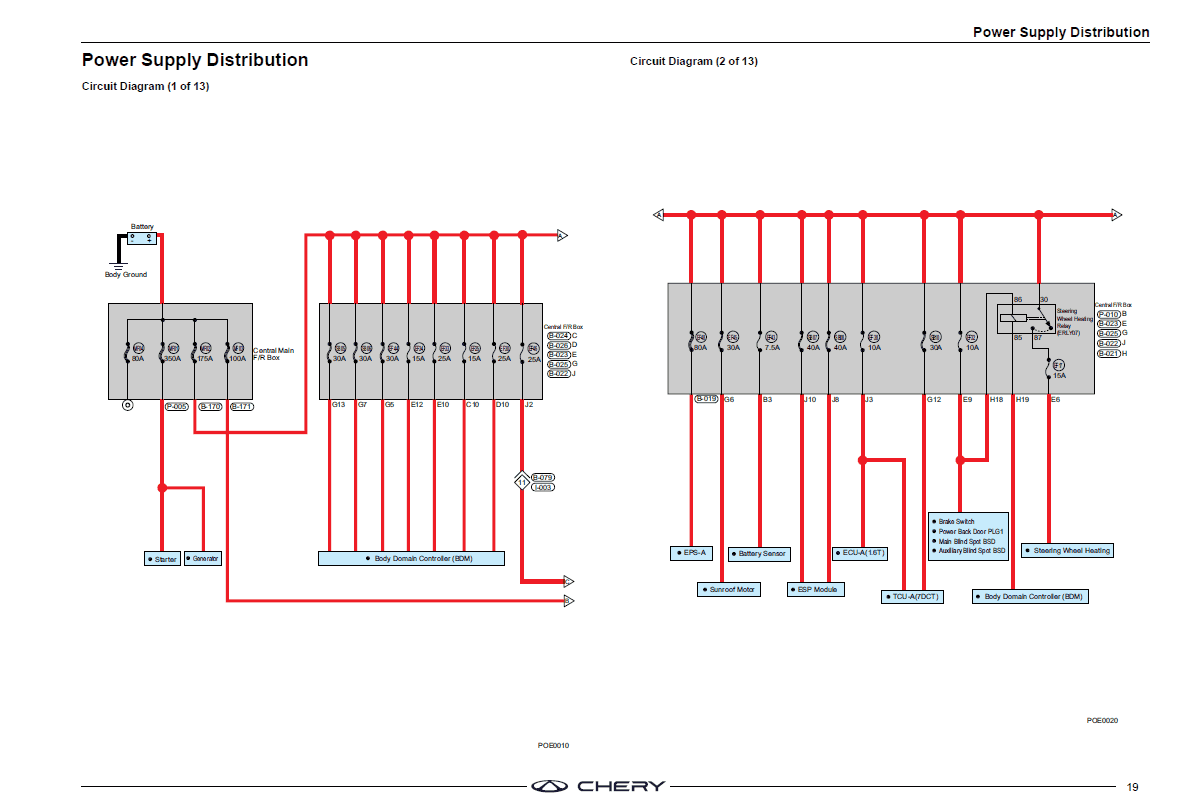

– Power Supply Distribution

Control Module Position and Terminal Definition:
– Control Module Position

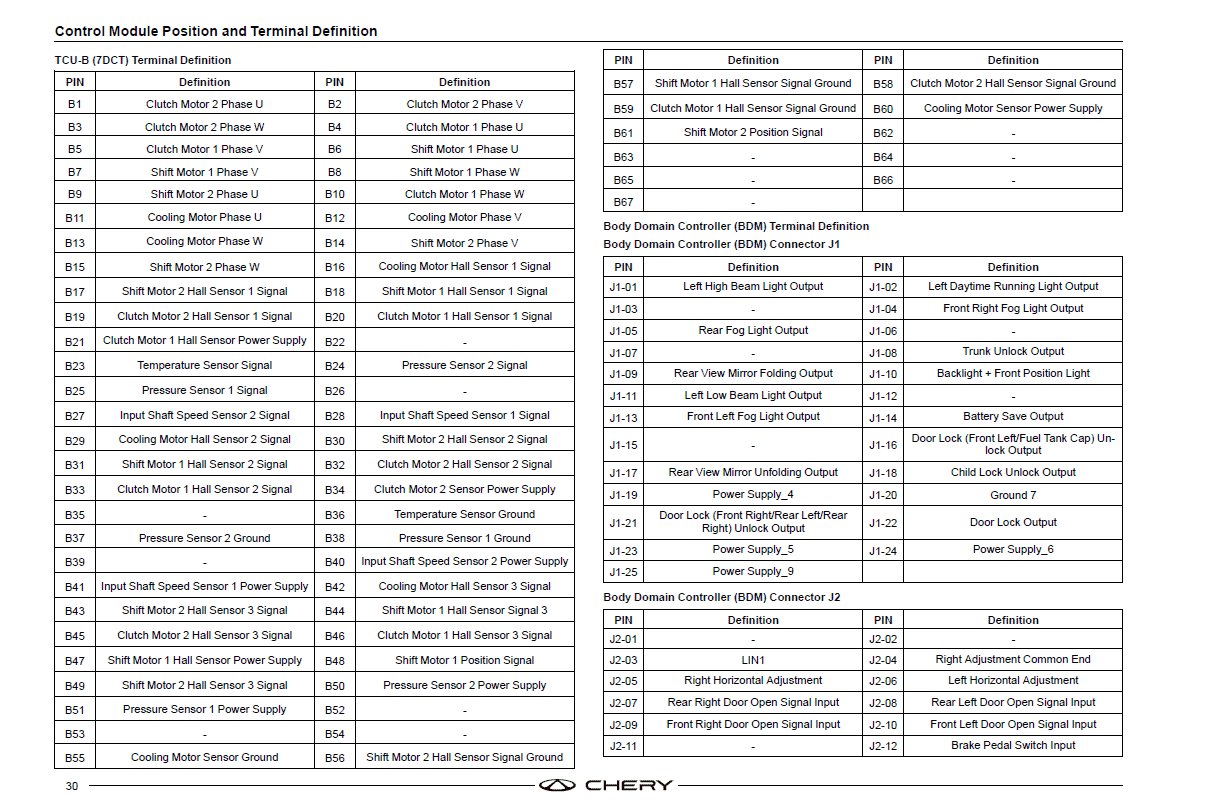

– Module Terminal Definition

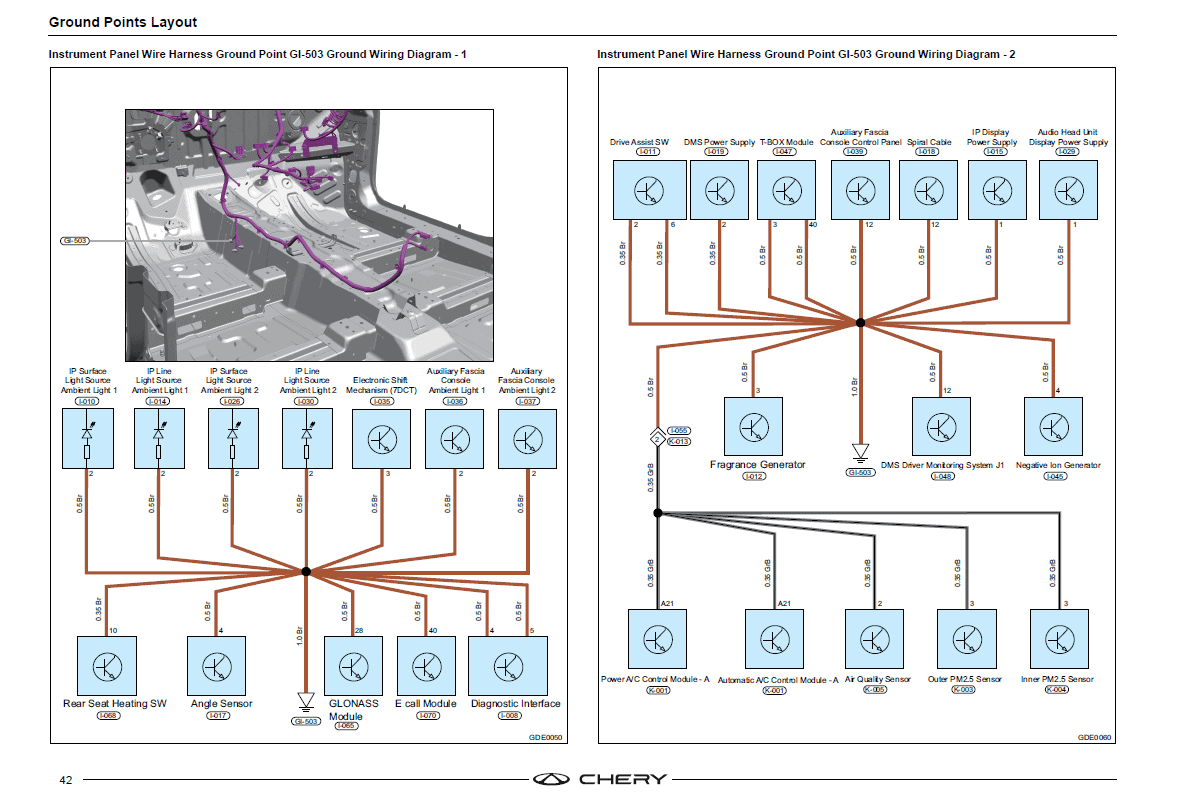

Ground Points Layout:
– Vehicle Ground Points Layout
– Ground Point Definition

Wire Harness Location Diagram:

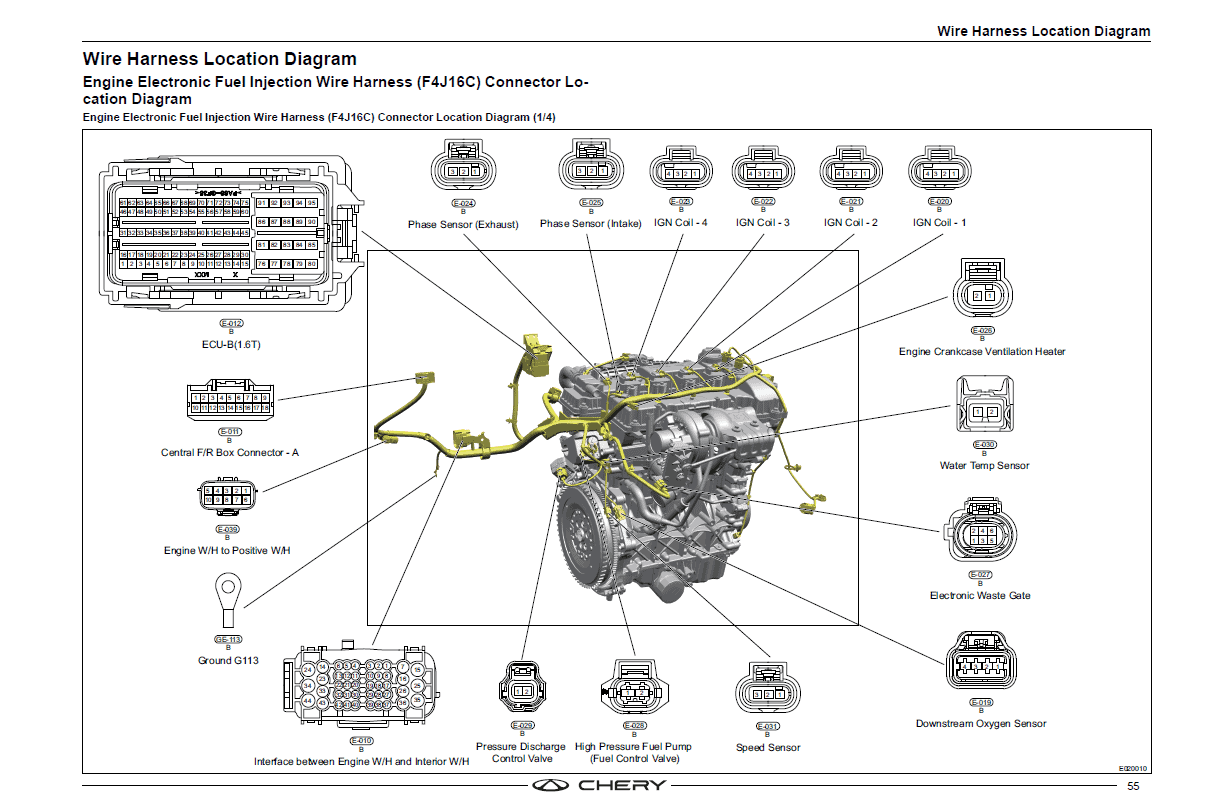

– Engine Electronic Fuel Injection Wire Harness (F4J16C) Connector Location Diagram
– 1.6T Injector Wire Harness Connector Location Diagram
– 1.6T Battery Positive Connector Location Diagram
– 1.6T Battery Negative Connector Location Diagram
– 1.6T Ground Wire Harness Connector Location Diagram
– Front Radar Wire Harness Connector Location Diagram
– Instrument Panel Wire Harness Connector Location Diagram
– Interior Floor Wire Harness Connector Location Diagram
– Front Left Door Wire Harness Connector Location Diagram
– Front Right Door Wire Harness Connector Location Diagram
– Rear Left Door Wire Harness Connector Location Diagram
– Rear Right Door Wire Harness Connector Location Diagram
– Left Back Door Wire Harness Connector Location Diagram
– Right Back Door Wire Harness Connector Location Diagram
– Rear Bumper Wire Harness Connector Location Diagram
– Automatic A/C Wire Harness Connector Location Diagram
– 7DCT Transmission Wire Harness Connector Location Diagram

Vehicle Schematic Diagram:
– Start Charing

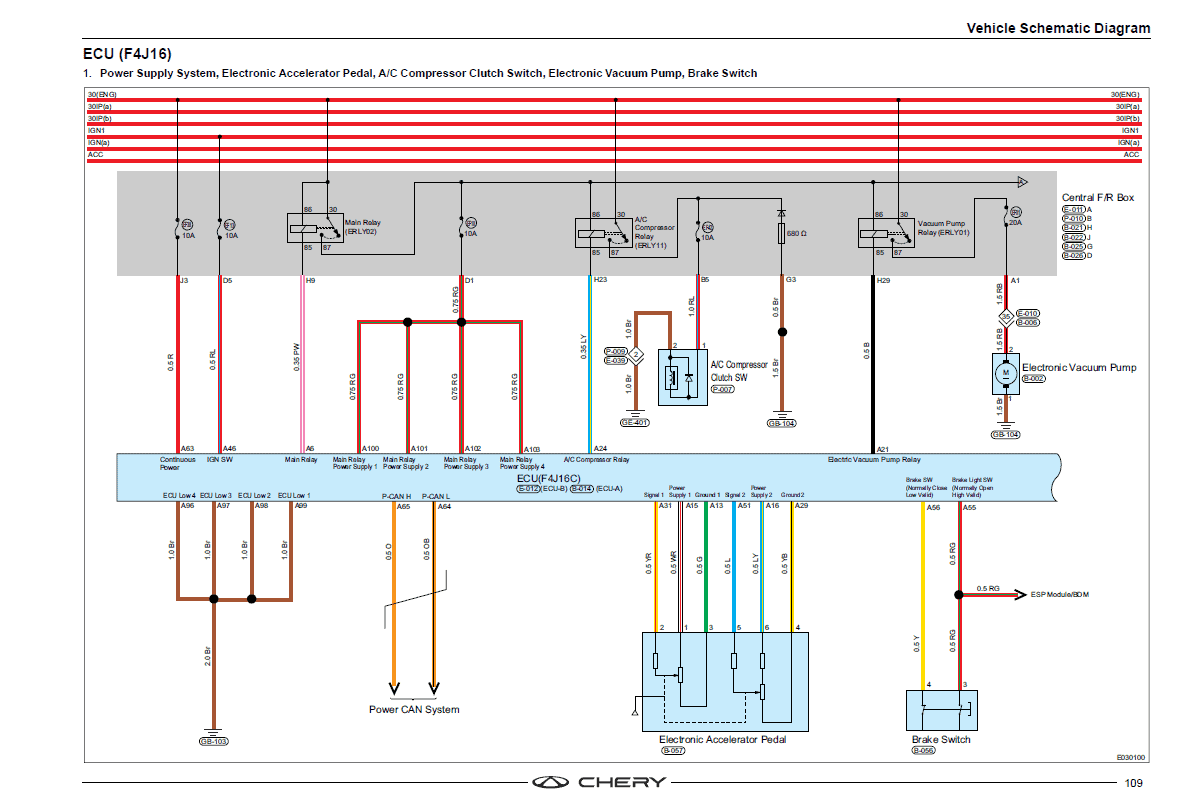

– ECU (F4J16)
– TCU (8AT)
– TCU (7DCT)
– BDM System
– Entertainment Domain Controller
– TBOX System
– E Call System
– GLONASS System
– CVBOX System
– DMS Driver Monitoring System
– Automatic A/C
– EPS System, Angle Sensor
– ESP System
– IPB System
– Airbag System
– Reversing Radar System (No Reversing Radar in Front, 4 Reversing Radars in Rear)
– Reversing Radar System (4 Reversing Radars in Front, and 4 Reversing Radars in Rear)
– Power Back Door (PLG)
– Door Control Module
– Blind Spot Monitor, Front Microwave Radar, Multi-function Front View Camera
– Front Backup Power Supply, Luggage Compartment Backup Power Supply, 220 V Power Supply Controller, Front USB Charging Module, Rear USB Charging Module, ETC
– Head Up Display Module, One-way Wireless Charging Module, Two-way Wireless Charging Module, Electronic Anti-glare Inside Rear View Mirror, Driving Recorder
– Four-wheel Drive System (4WD)
– Sunroof Motor, Diagnostic Interface
– Driver Seat with Memory (High Configuration)
– Driver Power Seat (Low Configuration), Driver Seat Heating (Low Configuration), Front Passenger Power Seat, Front Passenger Seat Heating (High Configuration)
– Rear Seat Heating
– Network Topological Diagram
– LIN Line
